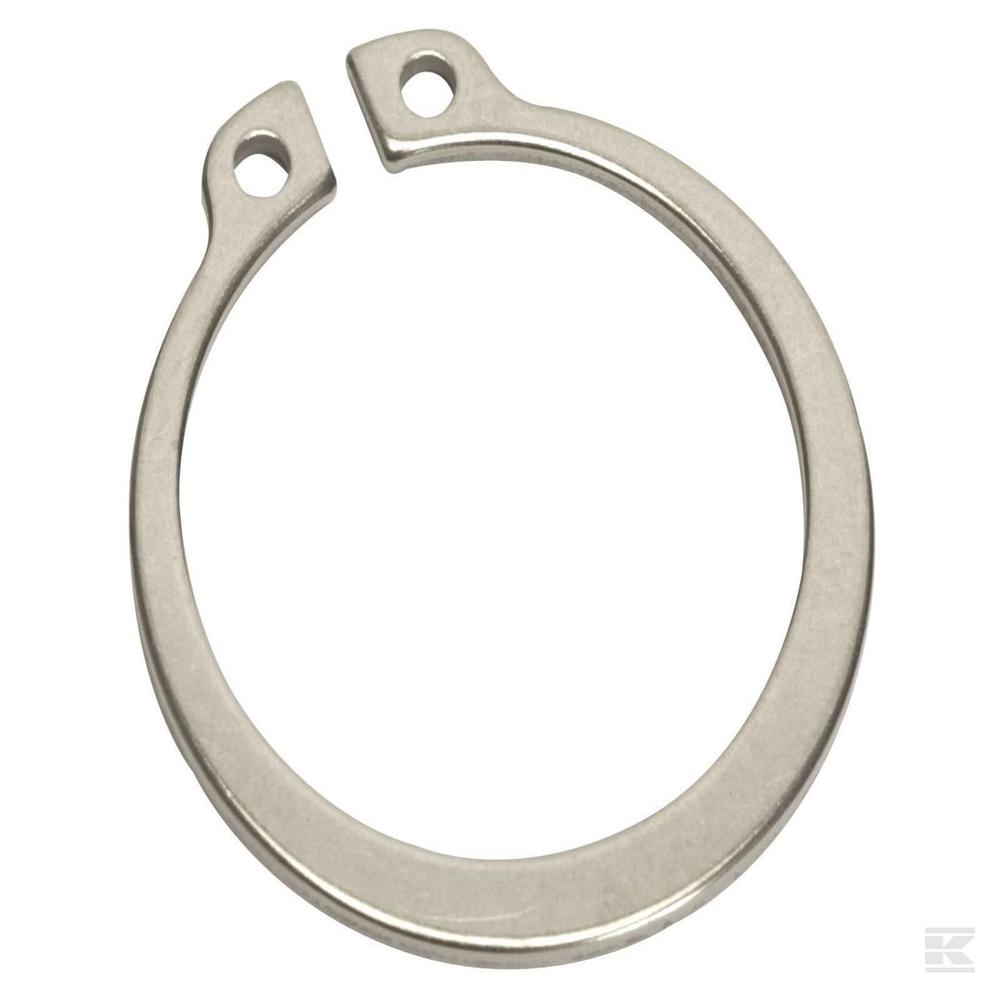

Stainless Steel External Circlips

Product Description

Accu Product Code (APC)

HEC-10-A2

Internal Diameter (D)

9.3mm

Shaft Diameter (SD)

10mm

Clip paisseur (T)

1mmTolerance: +0/-0.06mm

Matriel

Stainless Steel

terminer

Natural

Clearance Diameter (CL)

17mm

Clip Width

1.8mm

Edge Margin (M)

0.6mm

End Hole Diameter (Min) (E)

1.5mm

Grip Holes

Yes

Groove Depth

0.2mm

Groove Diameter (G) Tolerance Class

h10

Groove Diamtre (G)

9.6mmTolerance: +0/-0.06mm

Groove Width (W)

1.1mm

Groove Width (W) Tolerance Class

H13

Mtrique ou Imprial?

Metric

norme de fabrication

DIN 471

Spcifications des matriaux

1.4122 Stainless Steel

Tang Height (Max)

3.3mm
